LLVM build on Fedora23(VirtualBox)
VirtualBox上のFedora23でLLVMをビルドした。
インストール手順
1. 必要パッケージをインストール
$ sudo dnf install make gcc-c++ texinfo m4 autoconf automake libtool graphviz python-xdot
2. ソースコードをダウンロード・解凍・配置
$ mkdir llvm $ cd llvm/ $ wget http://llvm.org/releases/3.8.0/llvm-3.8.0.src.tar.xz $ wget http://llvm.org/releases/3.8.0/cfe-3.8.0.src.tar.xz $ wget http://llvm.org/releases/3.8.0/compiler-rt-3.8.0.src.tar.xz xz -dv llvm-3.8.0.src.tar.xz tar -xvf llvm-3.8.0.src.tar xz -dv cfe-3.8.0.src.tar.xz tar xvf cfe-3.8.0.src.tar mv cfe-3.8.0.src llvm-3.8.0.src/tools/clang xz -dv compiler-rt-3.8.0.src.tar.xz tar xvf compiler-rt-3.8.0.src.tar mv compiler-rt-3.8.0.src llvm-3.8.0.src/projects/compiler-rt
3. ディレクトリを作成して、ビルド
$ mkdir llvm-build $ cd llvm-build/ $ source ~/.bashrc ../llvm-3.8.0.src/configure --prefix=/usr/local/llvm --enable-optimized $ make -j2 $ make check $ sudo make install
かなり時間かかった。度々落ちるけど、メモリ不足だったので、make を繰り返せば終わる
基本操作
$ llvm ll llvm-as llvm-diff llvm-extract llvm-nm llvm-readobj llvm-symbolizer llc llvm-bcanalyzer llvm-dis llvm-link llvm-objdump llvm-rtdyld llvm-tblgen lli llvm-config llvm-dsymutil llvm-lto llvm-pdbdump llvm-size lli-child-target llvm-cov llvm-dwarfdump llvm-mc llvm-profdata llvm-split llvm-ar llvm-cxxdump llvm-dwp llvm-mcmarkup llvm-ranlib llvm-stress $ clang -o hoge.o hoge.c $ ./hoge.o hoge $ clang -emit-llvm -c -o hoge.bc hoge.c #LLVM ビットコードを出力 $ lli -force-interpreter hoge.bc #インタプリタで実行する $ clang -emit-llvm -S -o hoge.ll hoge.c #LLVM アセンブリを出力 $ llvm-as -o hoge.bc hoge.ll #LLVM アセンブリをLLVM ビットコードへ変換 $ lli hoge.bc #実行 $ llc -o hoge.s hoge.bc #LLVM アセンブリを経由してアセンブリ出力 $ llc -filetype=obj -o hoge.o hoge.ll #オブジェクト出力 $ opt -O3 -o hoge.bc hoge.ll #最適化 $ lli hoge.bc #実行 $ llvm-objdump -d hoge.o #ディスアセンブル hoge.o: file format ELF64-x86-64 Disassembly of section .text: main: 0: 55 pushq %rbp 1: 48 89 e5 movq %rsp, %rbp 4: bf 00 00 00 00 movl $0, %edi 9: 31 c0 xorl %eax, %eax b: e8 00 00 00 00 callq 0 <main+10> 10: 31 c0 xorl %eax, %eax 12: 5d popq %rbp
Clojure Leiningen
Clojureことはじめ
"Leiningen is the easiest way to use Clojure. With a focus on project automation and declarative configuration, it gets out of your way and lets you focus on your code."
Leiningen
leiningen をインストール
$ brew install leiningen
プロジェクトを作成
$ lein new hello
ディレクトリ構成は以下
$ tree . ├── CHANGELOG.md ├── LICENSE ├── README.md ├── dev-resources ├── doc │ └── intro.md ├── project.clj ├── resources ├── src │ └── hello │ └── core.clj ├── target │ ├── classes │ │ └── META-INF │ │ └── maven │ │ └── hello │ │ └── hello │ │ └── pom.properties │ └── stale │ └── extract-native.dependencies └── test └── hello └── core_test.clj 14 directories, 9 files
project.cljを書き換え
cat project.clj (defproject hello "0.1.0-SNAPSHOT" :description "FIXME: write description" :url "http://example.com/FIXME" :license {:name "Eclipse Public License" :url "http://www.eclipse.org/legal/epl-v10.html"} :dependencies [[org.clojure/clojure "1.7.0"]] :main hello.core)
lein repl で 実行。lein --help すると "Start a repl session either with the current project or standalone."
$ lein repl nREPL server started on port 52522 on host 127.0.0.1 - nrepl://127.0.0.1:52522 REPL-y 0.3.7, nREPL 0.2.10 Clojure 1.7.0 Java HotSpot(TM) 64-Bit Server VM 1.8.0_65-b17 Docs: (doc function-name-here) (find-doc "part-of-name-here") Source: (source function-name-here) Javadoc: (javadoc java-object-or-class-here) Exit: Control+D or (exit) or (quit) Results: Stored in vars *1, *2, *3, an exception in *e hello.core=> fo #Tabで候補が表示される foo for force format hello.core=> (foo "delaemon") delaemon Hello, World! nil
valgrind on Fedora22
Valgrind is an instrumentation framework for building dynamic analysis tools.
Valgrind Home
インストール
$ sudo dnf install valgrind
メモリリーク検出
＄ valgrind --leak-check=full ./fib ==4784== Memcheck, a memory error detector ==4784== Copyright (C) 2002-2013, and GNU GPL'd, by Julian Seward et al. ==4784== Using Valgrind-3.10.1 and LibVEX; rerun with -h for copyright info ==4784== Command: ./fib ==4784== 832040 ==4784== ==4784== HEAP SUMMARY: ==4784== in use at exit: 0 bytes in 0 blocks ==4784== total heap usage: 0 allocs, 0 frees, 0 bytes allocated ==4784== ==4784== All heap blocks were freed -- no leaks are possible ==4784== ==4784== For counts of detected and suppressed errors, rerun with: -v ==4784== ERROR SUMMARY: 0 errors from 0 contexts (suppressed: 0 from 0)
ヒーププロファイラ
$ valgrind --tool=massif ./fib ==4805== Massif, a heap profiler ==4805== Copyright (C) 2003-2013, and GNU GPL'd, by Nicholas Nethercote ==4805== Using Valgrind-3.10.1 and LibVEX; rerun with -h for copyright info ==4805== Command: ./fib ==4805== 832040 ==4805== $ ls -la massif.out.4805 -rw------- 1 dela dela 144 Feb 8 08:48 massif.out.4805 $ cat massif.out.4805 desc: (none) cmd: ./fib time_unit: i #----------- snapshot=0 #----------- time=0 mem_heap_B=0 mem_heap_extra_B=0 mem_stacks_B=0 heap_tree=empty
$ valgrind --tool=callgrind ./fib ==4837== Callgrind, a call-graph generating cache profiler ==4837== Copyright (C) 2002-2013, and GNU GPL'd, by Josef Weidendorfer et al. ==4837== Using Valgrind-3.10.1 and LibVEX; rerun with -h for copyright info ==4837== Command: ./fib ==4837== ==4837== For interactive control, run 'callgrind_control -h'. 832040 ==4837== ==4837== Events : Ir ==4837== Collected : 45872890 ==4837== ==4837== I refs: 45,872,890 $ ls -la callgrind.out.4837 -rw------- 1 dela dela 12618 Feb 8 08:49 callgrind.out.4837
perf on Fedora22
perf: Linux profiling with performance counters
Perf Wiki
インストール
$ sudo dnf isntall perf
てきとうなコードを用意
$ gcc fib.c -o fib
イベント数を取得
$ perf stat ./fib 832040 failed to read counter stalled-cycles-frontend failed to read counter stalled-cycles-backend Performance counter stats for './fib': 11.102711 task-clock (msec) # 0.967 CPUs utilized 2 context-switches # 0.180 K/sec 0 cpu-migrations # 0.000 K/sec 48 page-faults # 0.004 M/sec 19,328,246 cycles # 1.741 GHz <not supported> stalled-cycles-frontend <not supported> stalled-cycles-backend 46,303,730 instructions # 2.40 insns per cycle 9,527,011 branches # 858.080 M/sec 5,258 branch-misses # 0.06% of all branches 0.011485366 seconds time elapsed
解析実行
$ perf record ./fib 832040 [ perf record: Woken up 1 times to write data ] [ perf record: Captured and wrote 0.012 MB perf.data (47 samples) ]
解析ファイルが作られる
$ ls -la -rw------- 1 dela dela 14944 Feb 6 11:27 perf.data -rw------- 1 dela dela 47080 Feb 6 11:16 perf.data.old
解析結果を見る
$ perf report Samples: 68 of event 'cycles', Event count (approx.): 20695033 Overhead Command Shared Object Symbol 94.16% fib fib [.] fib 2.22% fib [kernel.kallsyms] [k] _raw_spin_lock 1.54% fib [kernel.kallsyms] [k] filemap_map_pages 1.49% fib [kernel.kallsyms] [k] async_page_fault 0.27% fib [kernel.kallsyms] [k] bad_range 0.17% fib [kernel.kallsyms] [k] run_timer_softirq 0.08% fib [kernel.kallsyms] [k] __remove_hrtimer 0.06% fib [kernel.kallsyms] [k] native_write_msr_safe
Build coreutils on Fedora22
Fedora22上にcoreutilsをビルドする。
コードを用意して、./bootstrapを実行すると、必要なパッケージがわかる
git clone git@github.com:coreutils/coreutils.git cd coreutils ./bootstrap ./bootstrap: line 424: autoconf: command not found ./bootstrap: Error: 'autoconf' not found ./bootstrap: line 424: automake: command not found ./bootstrap: Error: 'automake' not found ./bootstrap: line 424: autopoint: command not found ./bootstrap: Error: 'autopoint' not found ./bootstrap: line 221: bison: command not found ./bootstrap: Error: 'bison' not found ./bootstrap: line 221: gperf: command not found ./bootstrap: Error: 'gperf' not found ./bootstrap: line 424: makeinfo: command not found ./bootstrap: Error: 'makeinfo' not found ./bootstrap: line 221: patch: command not found ./bootstrap: Error: 'patch' not found
必要なものをインストール
sudo dnf install automake bison gperf patch gettext-devel texinfo
configure, make
./configure --prefix=${HOME}/bin/coreutils make CFLAGS='-g' make install
prefixで指定したディレクトリにビルドされたものが配置されてる
/home/user/bin/coreutils/bin/ls
ls以外のコマンドも出来てる。
次回はからは必要なものだけ make src/xxxで良い。
nginx build form source on Fedora23 Server (OSX VirtualBox)
OSX VirtualBox上のまっさらなFedora23Serverにnginxをsourceからビルド
最短距離
$ sudo dnf install git gcc pcre-devel zlib-devel openssl-devel $ git clone https://github.com/nginx/nginx.git $ cd nginx $ ./auto/configure --with-openssl=/usr/lib64/openssl $ make $ sudo make install $ sudo chmod +x /usr/local/nginx/sbin/nginx $ sudo /usr/local/nginx/sbin/nginx -V nginx version: nginx/1.9.10 built by gcc 5.3.1 20151207 (Red Hat 5.3.1-2) (GCC) configure arguments: --with-openssl=/usr/lib64/openssl $ sudo firewall-cmd --permanent --add-service=http success $ sudo firewall-cmd --permanent --add-port=80/tcp success $ sudo systemctl restart firewalld $ sudo firewall-cmd --list-all FedoraServer (default, active) interfaces: enp0s3 sources: services: cockpit dhcpv6-client http https ssh ports: 80/tcp masquerade: no forward-ports: icmp-blocks: rich rules:
以下、遭遇したエラー
gccがない
$ ./auto/configure checking for OS + Linux 4.2.3-300.fc23.x86_64 x86_64 checking for C compiler ... not found ./auto/configure: error: C compiler cc is not found
gccを入れる
$ sudo dnf install gcc
pcreがない
$ ./auto/configure ~ 省略 checking for PCRE library ... not found checking for PCRE library in /usr/local/ ... not found checking for PCRE library in /usr/include/pcre/ ... not found checking for PCRE library in /usr/pkg/ ... not found checking for PCRE library in /opt/local/ ... not found ./auto/configure: error: the HTTP rewrite module requires the PCRE library. You can either disable the module by using --without-http_rewrite_module option, or install the PCRE library into the system, or build the PCRE library statically from the source with nginx by using --with-pcre=<path> option.
pcreを入れる
$ sudo dnf install pcre-develop
zlibがない
$ ./auto/configure ~ 省略 checking for zlib library ... not found ./auto/configure: error: the HTTP gzip module requires the zlib library. You can either disable the module by using --without-http_gzip_module option, or install the zlib library into the system, or build the zlib library statically from the source with nginx by using --with-zlib=<path> option.
zilbを入れる
$ sudo dnf install zlib-devel
opensslがない
$ ./auto/configure
~ 省略
Configuration summary
+ using system PCRE library
+ OpenSSL library is not used
+ using builtin md5 code
+ sha1 library is not found
+ using system zlib library
opensslを入れる、オプション指定する
$ sudo dnf install openssl-devel $ ./auto/configure --with-openssl=/usr/lib64/openssl
port 80に接続できない
firewalldで許可する
$ sudo firewall-cmd --permanent --add-service=http success $ sudo firewall-cmd --permanent --add-port=80/tcp success $ sudo systemctl restart firewalld $ sudo firewall-cmd --list-all FedoraServer (default, active) interfaces: enp0s3 sources: services: cockpit dhcpv6-client http https ssh ports: 80/tcp masquerade: no forward-ports: icmp-blocks: rich rules:
Scala Play activator on OSX
久しぶりにScala Play環境作ったらactivator というものが出てきたらしい。
"Typesafe Activator は activator ui と activator new という 2つのコマンドを追加するカスタム版の sbt だ。 つまり、activator は sbt のスーパーセットであると言える。"
始める sbt — Typesafe Activator (sbt を含む) のインストール
あ、はい。
以下を見ながらすすめた。
https://www.playframework.com/documentation/ja/2.3.x/Installing
javaのバージョン確認
Download | The Scala Programming Language
[dela@MacBook-Air dela] javac -version Picked up JAVA_TOOL_OPTIONS: -Dfile.encoding=UTF-8 javac 1.6.0_65 [dela@MacBook-Air dela] java -version Picked up JAVA_TOOL_OPTIONS: -Dfile.encoding=UTF-8 java version "1.6.0_65" Java(TM) SE Runtime Environment (build 1.6.0_65-b14-466.1-11M4716) Java HotSpot(TM) 64-Bit Server VM (build 20.65-b04-466.1, mixed mode)
Scala 2.11.7はjdk1.6以上が必要。だから大丈夫な、はず。更新はあとでやろうと思う。
brew installで最新がインストールされる。
[dela@MacBook-Air dela] brew info scala scala: stable 2.11.7 (bottled), devel 2.12.0-M1 Scala programming language http://www.scala-lang.org/ /usr/local/Cellar/scala/2.11.7 (46 files, 31M) * Poured from bottle From: https://github.com/Homebrew/homebrew/blob/master/Library/Formula/scala.rb ==> Options --with-docs Also install library documentation --with-src Also install sources for IDE support --devel Install development version 2.12.0-M1 ==> Caveats To use with IntelliJ, set the Scala home to: /usr/local/opt/scala/idea Bash completion has been installed to: /usr/local/etc/bash_completion.d [dela@MacBook-Air dela] brew install scala ==> Downloading https://homebrew.bintray.com/bottles/scala-2.11.7.yosemite.bottle.tar.gz ######################################################################## 100.0% ==> Pouring scala-2.11.7.yosemite.bottle.tar.gz ==> Caveats To use with IntelliJ, set the Scala home to: /usr/local/opt/scala/idea Bash completion has been installed to: /usr/local/etc/bash_completion.d ==> Summary 🍺 /usr/local/Cellar/scala/2.11.7: 46 files, 31M
activatorをダウンロードしてパスを通す。
Build Reactive Applications with Typesafe Activator | @typesafe
export PATH=$PATH:/path/to/activator-dist-1.3.7
activatorコマンドの確認
[dela@MacBook-Air dela] activator -help Usage: activator <command> [options] Command: ui Start the Activator UI new [name] [template-id] Create a new project with [name] using template [template-id] list-templates Print all available template names -h | -help Print this message Options: -v | -verbose Make this runner chattier -d | -debug Set sbt log level to debug -mem <integer> Set memory options (default: , which is -Xms1024m -Xmx1024m -XX:MetaspaceSize=64m -XX:MaxMetaspaceSize=256m) -jvm-debug <port> Turn on JVM debugging, open at the given port. # java version (default: java from PATH, currently java version "1.8.0_65") -java-home <path> Alternate JAVA_HOME # jvm options and output control -Dkey=val Pass -Dkey=val directly to the java runtime -J-X Pass option -X directly to the java runtime (-J is stripped) # environment variables (read from context) JAVA_OPTS Environment variable, if unset uses "" SBT_OPTS Environment variable, if unset uses "" ACTIVATOR_OPTS Environment variable, if unset uses "" In the case of duplicated or conflicting options, the order above shows precedence: environment variables lowest, command line options highest.
Scala Play アプリを新規作成して、activatorコンソールを起動する。
[dela@MacBook-Air develop] activator new my-first-app play-scala [dela@MacBook-Air develop] cd my-first-app/ [dela@MacBook-Air my-first-app] activator #省略 [error] java.lang.UnsupportedClassVersionError: org/webjars/WebJarExtractor$Cache : Unsupported major.minor version 51.0
jdkを更新。使おうとしてるバージョンに合わせる。
Java SE - Downloads | Oracle Technology Network | Oracle
ダウンロードして.zshrcのJAVA_HOMEを以下に変更
export JAVA_HOME=`/usr/libexec/java_home -v 1.8`
activatorコンソールを再起動する。
[dela@MacBook-Air my-first-app] activator Picked up JAVA_TOOL_OPTIONS: -Dfile.encoding=UTF-8 [info] Loading project definition from /Users/dela/Documents/develop/scala/my-first-app/project [info] Set current project to my-first-app (in build file:/Users/dela/Documents/develop/scala/my-first-app/) [my-first-app] $
アプリを起動。初回は相変わらずすごく時間かかる
[my-first-app] $ run [info] Updating {file:/Users/dela/Documents/develop/scala/my-first-app/}root... [info] Resolving jline#jline;2.12.1 ... [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-server_2.11/2.4.6/play-server_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-server_2.11;2.4.6!play-server_2.11.jar (847ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-netty-server_2.11/2.4.6/play-netty-server_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-netty-server_2.11;2.4.6!play-netty-server_2.11.jar (539ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-jdbc_2.11/2.4.6/play-jdbc_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-jdbc_2.11;2.4.6!play-jdbc_2.11.jar (430ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-cache_2.11/2.4.6/play-cache_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-cache_2.11;2.4.6!play-cache_2.11.jar (426ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-ws_2.11/2.4.6/play-ws_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-ws_2.11;2.4.6!play-ws_2.11.jar (651ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play_2.11/2.4.6/play_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play_2.11;2.4.6!play_2.11.jar (1459ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-iteratees_2.11/2.4.6/play-iteratees_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-iteratees_2.11;2.4.6!play-iteratees_2.11.jar (553ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-json_2.11/2.4.6/play-json_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-json_2.11;2.4.6!play-json_2.11.jar (552ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-netty-utils/2.4.6/play-netty-utils-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-netty-utils;2.4.6!play-netty-utils.jar (419ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-functional_2.11/2.4.6/play-functional_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-functional_2.11;2.4.6!play-functional_2.11.jar (438ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-datacommons_2.11/2.4.6/play-datacommons_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-datacommons_2.11;2.4.6!play-datacommons_2.11.jar (426ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-jdbc-api_2.11/2.4.6/play-jdbc-api_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-jdbc-api_2.11;2.4.6!play-jdbc-api_2.11.jar (424ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-test_2.11/2.4.6/play-test_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-test_2.11;2.4.6!play-test_2.11.jar (431ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-specs2_2.11/2.4.6/play-specs2_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-specs2_2.11;2.4.6!play-specs2_2.11.jar (424ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-omnidoc_2.11/2.4.6/play-omnidoc_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-omnidoc_2.11;2.4.6!play-omnidoc_2.11.jar (2169ms) [info] downloading https://repo1.maven.org/maven2/com/typesafe/play/play-docs_2.11/2.4.6/play-docs_2.11-2.4.6.jar ... [info] [SUCCESSFUL ] com.typesafe.play#play-docs_2.11;2.4.6!play-docs_2.11.jar (1464ms) [info] Done updating. --- (Running the application, auto-reloading is enabled) --- [info] p.c.s.NettyServer - Listening for HTTP on /0:0:0:0:0:0:0:0:9000 (Server started, use Ctrl+D to stop and go back to the console...) [info] Compiling 7 Scala sources and 1 Java source to /Users/dela/Documents/develop/scala/my-first-app/target/scala-2.11/classes... [info] 'compiler-interface' not yet compiled for Scala 2.11.6. Compiling... [info] Compilation completed in 16.004 s [info] - play.api.Play - Application started (Dev)

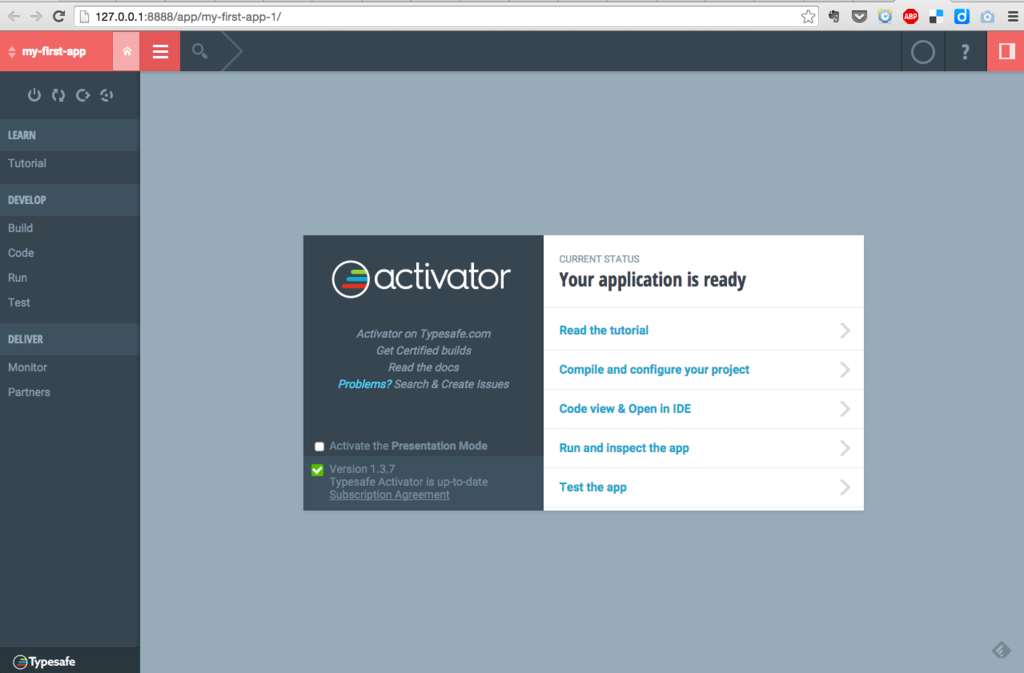

activator ui 使ってみた。
[dela@MacBook-Air my-first-app] activator ui
脇のメニューから大体できること想像がつく。サーバーのコードをブラウザから変更できそう。
使ってみないと判断できないけど、思想は進んでる。
